Quadro Simple 50

Quadro is a very popular collection. The devices offer great fun for both younger and older children. Their attractiveness is influenced by various types of slides, varied entrances, climbing walls, ropeways, tunnels and many additional attractions in the form of games, manipulations and moving elements, which are perfect places to use children's energy.

  • Serial number: 1201EPZN-A
  • Price: ON DEMAND

Bearing posts are square and have a cross section of 9x9 cm. They are made of glue-laminated wood, fixed 10 cm above the ground level with metal anchors. Antislip platforms. Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings. Sliding surface is made of acid-proof, stainless steel sheet. Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant. All fittings and connectors are weather and UV resistant. Wood elements are oiled or covered with a colour glaze. Steel elements are protected against corrosion with zinc layer and powder paint coating.

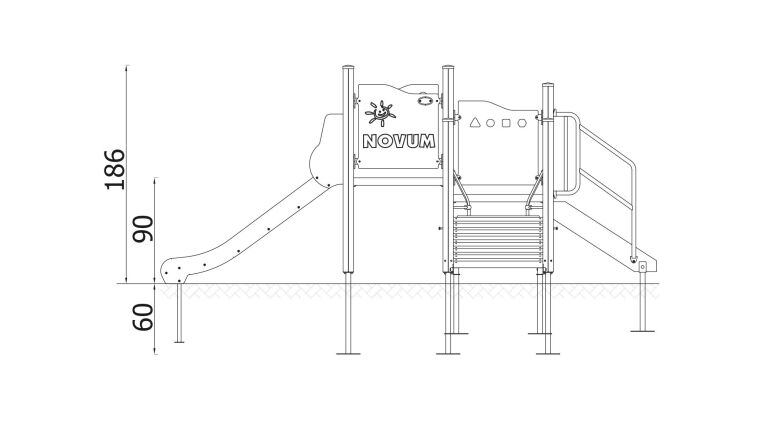

Height (m) 1.86
Width (m) 4.21
Length (m) 4.54
Freeheight of fall (m) 1

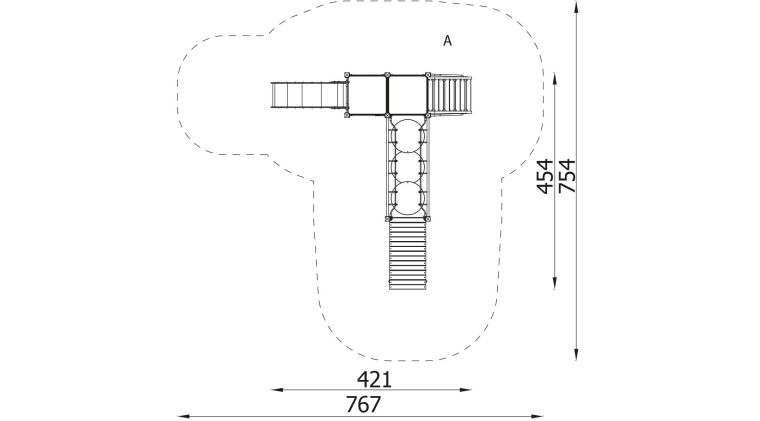

Safety area dimension 7,54 - 7,67
User numbers 12
Compliance with the norm EN-1176-1:2017-12

The method, date and cost of delivery are each time agreed by the Parties before shipment. We comprehensively organize transport to the place indicated by the client. However, the full cost of transportation is borne by the customer. It is the client's responsibility to prepare the project and report the construction of the playground to the appropriate authorities, prepare a safe surface, dismantle old equipment, bushes and trees and prepare the site. We provide detailed assembly instructions, the customer is responsible for the assembly itself.
